GenII radio telemetry data logging systems

Eltek GenII monitoring systems provide data logging and alarm generation for a very wide range of applications. Systems are installed in museums, laboratories, storage and warehousing facilities, pharmaceutical, production, and domestic premises - just about any environment where accurate and reliable data is essential for monitoring, manufacturing, research or audit purposes. Now with 250 sensor capability, 125 transmitter capability, 250,000 readings and built-in standby battery. Cost-effective, even on occasions when using one transmitter and one sensor only, GenII can be expanded to meet any users requirements. License exempt UHF frequencies are used and sensors can be located almost anywhere.

Transmitter family from Eltek
Eltek transmitters and reciver data logger

RX250AL Receiver / Logger



The RX250AL Receiver logger is the heart of a GenII logging system. Because the RX250AL is responsible for receiving and storing the data, it is not necessary to have a PC permanently connected. The built-in battery means data logging is not interrupted even if there is a temporary AC mains failure. Multiple RX250ALs can be used for wide area coverage. Alarms (including SMS alarms) come as standard. (To use SMS alarms, a GSM modem is required).

​

Features:

  • Data Logger with integral receiver

  • Alarm and GSM text output

  • 24 hour built-in standby battery

  • 247K readings expandable to 2M readings

  • Dual RS232 serial ports

  • Transmitter battery alarm

  • Display and keypad for "online" metering

  • Extensive communications options

RX250AL Receiver Data Logger picture

SRV250 - Receiver Logger with 3G Connectivity



SRV250 is a new receiver logger from Eltek designed for use with the extensive range of GenII transmitters. It is intended for users who require realtime data, multiple site access and advanced analytical software. Communications from the SRV250 to the remote server is via mobile data providing a truly single box solution.

​

Features

  • Compact single box solution: built-in 3G, battery back-up and 250,000 readings fall back logging.

  • 24 hour back up battery, should the AC supply fail

  • Button panel and LCD for metering, transmitter battery view, system diagnostics and test

  • Panel mounted push-push socket to latch/unlatch Standard SIM

  • Optimised data packet protocol providing cost effective use of SIM

  • Text messaging for channels in alarm

  • Supplied with free Gateway software.

  • Optional accessories include Moxa Ethernet/internet adaptor

RX250AL front view

SC250 Receiver / Logger



The SC250 is the hub of the secure logging system, for use with Eltek's Darca Secure software. It is not necessary to have a permanently connected PC and the built-in battery means data logging is not interrupted if there is a temporary AC supply failure. Alarms are included as standard (SMS and local) and include grouping so that alarms for individual departments can be configured.

​

Features:

  • Data Logger with integral receiver

  • Alarms are logged

  • Data is checksummed to prevent corrupted data from being downloaded

  • 247K readings expandable to 2M readings

  • Alarm raised if external power removed (e.g. mains failure)

  • Grouping for alarm text messages

  • Extensive communications options

Eltek SC250 secure receiver

HC16 Receiver / Logger



The Eltek HC16 receiver/logger performs both data logging and heater control. You can specify the ideal temperature for each room, depending on its function, at the time of day and the day of the week. You may adjust the temperature or the relative humidity in a particular room without any reference to any third party.

The built-in battery means data logging is not interrupted even if there is a temporary AC mains failure. Multiple HC16s can be used for wide area coverage.

​

Features:

  • Three basic modes of operation:

  • Temperature control only

  • Conservation mode (using heating to control humidity, where humidity is part of the control loop)

  • Comfort mode (temperature control respecting conservation requirements and visitor comfort)

  • Individual night and day programs

  • SMS text and email alarm messages to key personnel to prevent problem escalation

  • 24 hour built-in standby battery

  • 247K readings expandable to 2M readings

  • Transmitter battery alarm

  • Extensive communications options

Eltek RX250AL top view

GenII RC250 Telemetry receiver



The RC250 is a high performance telemetry receiver designed for use with the standard GenII range of telemetry transmitters, repeaters and accessories. It outputs ModBus RTU or serial data to a connected PC for integration into industry standard PC Software. Such software could include LabVIEW, DASYlab, Wonderware or proprietary software compliant to CFR21 Part 11.

​

This feature rapidly realises a broad spectrum of applications including:

  • Monitoring and analysis

  • Alarm and control

  • Real time data

  • Profile mapping



For customers in the pharmaceutical sector (e.g. where CFR21 Part11 compliance is required) and in the industrial, construction, storage, research and conservation sectors..

​

​

Features: ​

  • Built in rechargeable battery pack for more than 24 hour operation, should AC supply fail

  • Power supply for 110 to 250VAC included

  • Built in display for indicating which transmitter is active and its received signal strength

  • Supplied with configuration software which includes set-up for authorised transmitters

  • Maximum 160 channels

  • Can be used with multiple repeaters (type RP250GD)

  • SMA antenna socket for attached antenna or external antenna options

  • Rugged aluminium case for free standing or wall mounting

  • Polled data output on 6 pin Mini DIN socket

  • For direct connection to PC or via Intranet or Ethernet using Moxa D311 adaptor option or via GSM using Eltek GSM modem kit

Eltek transmitter picture top view

WSR Wireless Sensor Receiver



TRadio connected sensors offer an unrivalled flexibility to create data gathering systems without the encumbrances of wires. Often users have invested heavily in conventional loggers or other data acquisition system. For the first time Eltek's WSR enables users to integrate wireless connected systems to their existing systems, using field proven GenII transmitters and sensors providing accurate measurement without sacrificing reliability or performance. The WSR system is now offered as a system in its own right.

​

  • Up to 16 sensors' values (e.g. temperature, humidity, light, voltage or current) are presented as corresponding 0-5VDC or 4-20mA outputs on the WSR receiver, allowing quick, easy and accurate connection to existing data gathering systems.

  • Uses standard license exempt frequencies

  • Long distance assured - up to 1Km depending on installation

  • Uses Eltek’s field proven and readily available series of GenII transmitters

  • Ideal for permanent or temporary applications e.g.

    • temperature mapping

    • research projects

    • difficult to wire environments

  • Continue to use your preferred analysis software

​

The WSR is a self-contained mains-powered receiver and output unit with built-in batteries providing 48 hours of operation in the event of a mains failure. An LCD is incorporated for real time metering of sensor values. The WSR is suitable for systems which accept 0-5VDC analogue inputs with slowly changing variables – typically measured every 10 seconds. Two models are available with either 8 or 16 inputs/outputs.

Most Eltek GenII transmitters can be used with the WSR (apart from event or pulse transmitters).

​

Features:

  • Built in rechargeable battery pack, for more than 24 hour operation, should AC supply fail

  • Power supply for 110 to 250VAC included

  • Built in display for quick review of received sensor values

  • Supplied with “WSR” configuration software, easy to create authorised transmitter list and scaling.

  • Can be used with multiple repeaters (type RP250GD)

  • SMA antenna socket for attached antenna or external antenna options

  • Compact enclosure, free standing or wall mounting, easy to use rising cage instrumentation connectors.

  • Versions available to provide 8 or 16 4-20mA output or 8 or 16 0-5VDC output.

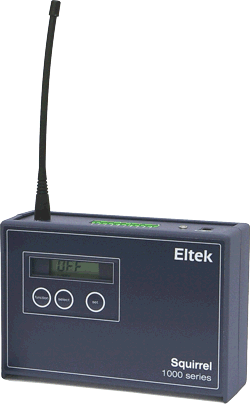

Eltek WSR 250 view

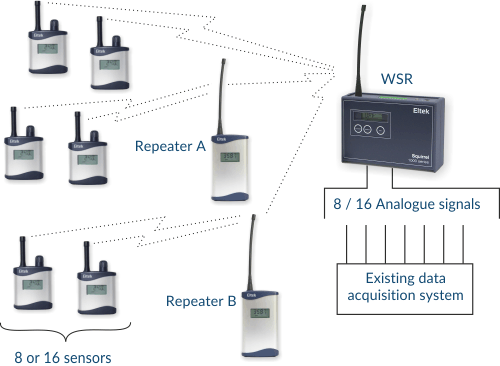

Typical System Configuration

Eltek Gen2 system overview picture

RP250GD Repeater



The Eltek telemetry radio range can be hundreds of meters without the use of nodes requiring power. Furthermore, the range can be extended to cover large areas by strategic placement of repeaters.

The RP250GD repeater receives and rebroadcasts signals from GenII transmitters, significantly extending the distance over which a system can operate. Multiple repeaters can be used in a system.

​

Features:

  • Contains high performance receiver and transmitter compliant to EN 300-220.

  • LCD indicates on-air transmitter identity, status and signal strength.

  • Extends range of transmitters many-fold.

  • Multiple repeaters can be used, enabling difficult sites to be covered easily.

  • Mains powered with built-in rechargeable batteries to provide up to 48 hours standby in the event of a mains failure.

  • Free standing or wall mountable.

  • Antenna socket permits use of external antenna to improve performance in difficult conditions.

  • PC software is used to configure the repeater, download transmitter activity data and specify transmitter authorisation.

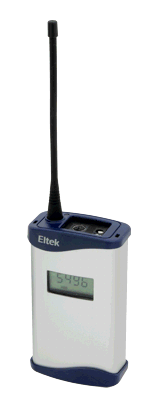

Eltek repeater picture

RP250GDDA Repeater



Specially designed for repeating signals through an RF barrier.

​

Features:

  • The RP250GDDA has all the features of the RP250GD, with the addition of 2x antenna SMA connectors; with one antenna to be placed within the barrier, and one on the far side.

  • The RP250GD repeater receives and rebroadcasts signals from GenII transmitters, significantly extending the distance over which a system can operate. Multiple repeaters can be used in a system.

  • Please note: the antenna wire will need to penetrate the RF barrier. Typically, an installation would warrant 2x LW-ANT antennae.

Eltek repeater picture top view
